Product Dimensions 1.88"h x 7.25"w x 4.5"d

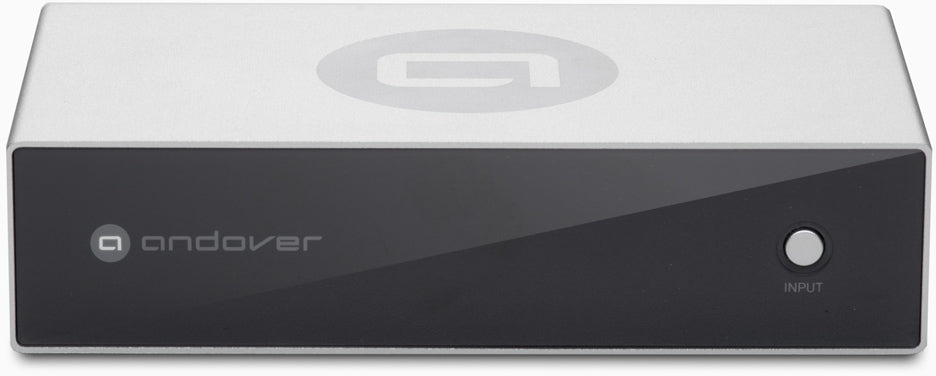

Ready for both Moving Magnet and Moving Coil cartridges, the SpinStage™ phono preamp delivers a host of circuitry refinements and a range of adjustments that would make some expensive preamplifiers jealous.Read More
View Options
Not Stocked In Local Warehouse
Although phono inputs are gaining popularity, not all audio systems have them. Of those that do, only a few accommodate low-output Moving Coil (MC) cartridges as well as Moving Magnet (MM). And only a very few have the robust input impedance options to exactly match the needs of your particular MM cartridge. The SpinStage preamp provides four separate MM input impedance settings, and a staggering 15 separate MM capacitance options. You’re not simply connecting a turntable; you’re eliciting its full performance.
Low-output Moving Coil cartridges are highly-prized by audiophiles. But most value-priced phono preamps accommodate MC cartridges by simply increasing the gain on their Moving Magnet inputs, an approach that increases background noise. In dramatic contrast, the SpinStage preamp incorporates a dedicated Moving Coil gain stage. So, you’ll hear true Moving Coil performance – against a background of satisfying silence.
As the lowest-level signals among component interconnects, the magnetic cartridge outputs are exquisitely sensitive to even tiny amounts of noise and distortion. The SpinStage preamp protects your music with isolated dual-mono circuitry, a DC servo circuit and a switchable subsonic filter (20 Hz, 12 dB/octave) to keep turntable rumble under control.
General Specs | |
Product Weight (lbs.) | 1.1 |
Depth (in.) | 4.5 |
Width (in.) | 7.25 |
Height (in.) | 1.88 |
Voltage | 15 |
Amp | 0.5 |
Color Finish Name | Aluminum |
Collection | SpinStage |
Technical Details | |
RIAA Equalization Accuracy: | +/- 0.1dB typ, 0.2dB max |
Overall Frequency Response: | 0.5Hz - 50kHz +/- 1dB |
Signal to Noise Ratio (unweighted): | MM - 78dB, MC - 76dB (Referenced to 50 Ohm source) |
Input Impedance, MM (selectable): | 18k Ohm, 22k Ohm, 47 kOhm, 100k Ohm |
Input Impedance, MC: | Effectively 0 Ohm |
Input Capacitance, MM (Selectable): | 0pF, 22pF, 47pF, 69pF, 100pF, 122pF, 147pF, 169pF, 220pF, 242pF, 267pF, 289pF, 320pF, 342pF, 389pF |
Nominal Gain, MM: | 40.5dB |
Nominal Gain, MC: | 66.5dB (with 10Ohm source) |
Subsonic Filter: | 20Hz, 12db/Octave. Bypassable. |
Typical Output Level: | 500mV RMS |
Max Output Level: | 8V RMS |
Input Overload, MM: | 120mV @ 1kHz |
Input Overload, MC: | 6mV @ 1kHz |
Additional Information | |
Aux Input: | Direct passthrough via relay, no active circuitry. |
Finish: | Fine bead-blasted clear anodized aluminum |
Power Requirements: | 15vDC/500mA |
