Atlona® 4K/UHD Two-Input Wallplate Switcher

At a Glance

The Atlona AT-HDVS-210H-TX-WP-KIT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K video extension, automatic switching for the two HDMI inputs, and automatic display control. It includes the AT-HDVS-210H-TX-WP two-input HDBaseT wallplate switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver.

Proposition 65 Warning for California Residents

The Atlona AT-HDVS-210H-TX-WP-KIT is an HDBaseT transmitter and receiver combination that delivers a complete integration solution with 4K video extension, automatic switching for the two HDMI inputs, and automatic display control. It includes the AT-HDVS-210H-TX-WP two-input HDBaseT wallplate switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. The HDVS-210H-TX-WP features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. The UHD-EX-100CE-RX-PSE features a compact, low-profile enclosure that can easily be concealed behind a wall-mounted display or above a projector. This HDBaseT extender solution extends AV and control up to 330 feet (100 meters) over category cable.

The transmitter is remotely powered by the receiver via Power over Ethernet (PoE). This makes the HDVS-210H-TX-WP-KIT ideal for applications in which the transmitter needs to be installed at a wall location or in a lectern where local AC power may not be available.

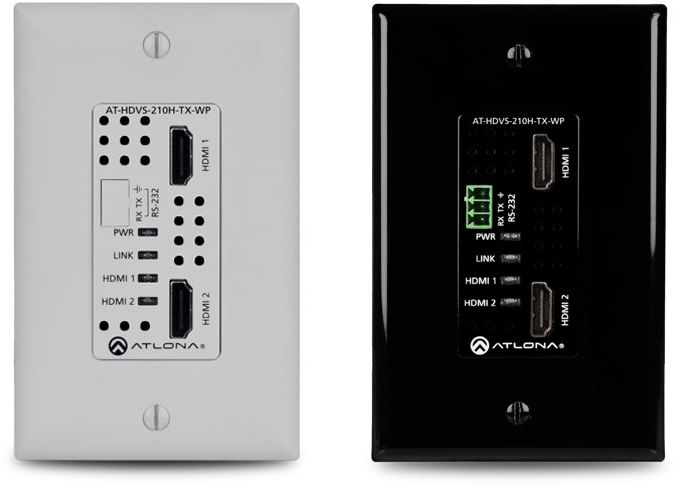

US one-gang enclosure for Decora-style wallplate openings – interchangeable black or white trim kits

Allows inconspicuous installation on a wall, in furniture, or in a floor box

Includes black and white wallplates and faceplates

Ships with white plates installed

2×1 HDBaseT switcher with HDMI inputs

Conveniently accepts two HDMI sources in a single-gang enclosure

Minimizes wall or surface space for a discreet installation

HDBaseT extender for AV, power, and control up to 330 feet (100 meters)

Extends HDMI up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable*

Uses easy-to-integrate category cable for low-cost, reliable system installation

* To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4

Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection

Allows protected content stream to pass between authenticated devices

Transmitter powered by receiver via PoE (Power over Ethernet)

Industry standard IEEE 802.3af PoE is supplied by the AT-UHD-EX-100CE-RX-PSE receiver over HDBaseT

Allows convenient wall, floor box, or furniture installation without the need for local AC power

Automatic display control

Automatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC.

Enables display and volume control. CEC enables control of consumer displays (as supported by the display manufacturer).

Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown

Eliminates the need for a complex AV control system

Automatic input selection using hot plug detect and video detection technology

Selects active input when sources are connected or if there is a change in source power status

Enables simplified, automatic system operation without user intervention

Multi-channel audio compliant

Passes through multi-channel audio formats from the HDMI inputs

Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, DTS® Digital Surround™, and DTS-HD Master Audio™

EDID management

Manages EDID communications with the source through a display’s EDID or internally stored EDID

Ensures desired audio formats and video resolutions are provided to the AV system

HDCP management

Automatically reports HDCP compliance status to the source based on the sink device

HDCP compliance can also be disengaged through AMS or a control system

Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

Integrated HDBaseT link status monitoring

Tests integrity of the HDBaseT cable link between the transmitter and the receiver

Web GUI provides real-time link status

Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality

Intuitive GUI-based configuration using integrated web server (transmitter)

Offers menu-based configuration of device settings including network access, input switching, display control, HDCP and EDID management, and more

Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field

TCP/IP and RS-232 control (transmitter)

Flexible control options for compatibility with Atlona Velocity™ and third-party control systems

TCP/IP control available through the receiver

Reduces integration time and costs

Easy to configure and manage with AMS (Atlona Management System) – transmitter

Centralized, network-based configuration and management of Atlona IP-controllable products and systems

Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence

Available as a cost-effective server appliance, or a free software download

Field-updatable firmware

Transmitter can be updated in the field via AMS or the web GUI

USB port on transmitter and receiver for firmware updates

Front panel power and signal status LEDs

LED indicators provide power, HDBaseT link, and input selection status information

Provides local, convenient setup and troubleshooting when network access is not available

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure (receiver)

Easy installation into confined spaces behind displays and above projectors

Keeps devices out-of-sight when placed in public spaces

Included accessories

Installation guide

Interchangeable black and white wallplates and faceplates

Surface mounting hardware

External universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in commercial and residential systems

Specify, purchase, and install with confidence
