Our Performance Series deliver fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the monitors used in the world’s most advanced recording studios.

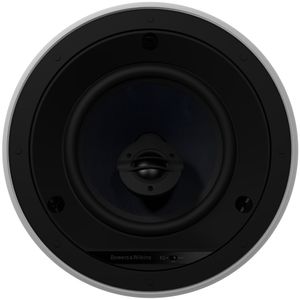

The CCM663 is a true high performance ceiling-mount speaker. The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable offaxis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
|Description||2-way in-ceiling system|
|Drive Units||1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter; 1x ø150mm (6in) blue Aramid Fibre cone bass/midrange|
|Frequency Range (-6dB)||45Hz – 50kHz|
|Recommended Amp Power||25 – 130w|
|Sensitivity SPL (2.83V, 1m)||88dB|
|Impedance Nominal (min)||8 Ohms (4.5 Ohms)|
|Frame diameter||240mm (9.5in)|
|Cut-out diameter||202mm (8in)|
|Depth behind surface||133mm (5.2in)|
|Color Finish Name||Gray|
|RMS Power Handling (Watts)||130|
|Speaker Type||In-Ceiling Speakers|
