Our Performance Series deliver fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the monitors used in the world’s most advanced recording studios.

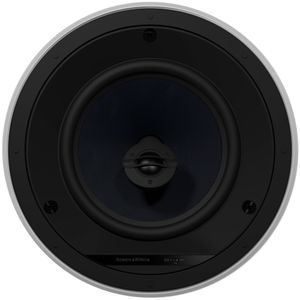

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.
|Description||2-way in-ceiling system|
|Drive Units||1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter; 1x ø200mm (8in) blue Aramid Fibre cone bass/midrange|
|Frequency Range (-6dB)||35Hz – 50kHz|
|Recommended Amp Power||25 – 130w|
|Sensitivity SPL (2.83V, 1m)||88dB|
|Impedance Nominal (min)||8 Ohms (4.5 Ohms)|
|Frame diameter||290mm (11.4in)|
|Cut-out diameter||250mm (9.8in)|
|Depth behind surface||133mm (5.2in)|
|Color Finish Name||Gray|
|RMS Power Handling (Watts)||130|
|Speaker Type||In-Ceiling Speakers|
