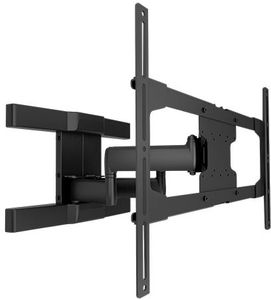

Chief® Black Articulating Outdoor Wall Mount

Chief

Model #:

ODMLA25

Model #: ODMLA25
127548
Chief
$627.20

At a Glance

Product Dimensions 18.5"h x 29.45"w x 4.88"d

Designed to support all-weather outdoor installations and enhance the viewing experience. The ODMLA25 Articulating Outdoor Wall Mount provides full motion for optimal viewing from many positions. The mount features a weatherproof design including protective outdoor-rated finishing and stainless-steel hardware.Read More

Sale $627.20

$784.00

Save $156.80

Not Stocked In Local Warehouse

SyncposQty 0

People also viewed:

Get to know this product.

Product Overview

Product Overview

Designed to support all-weather outdoor installations and enhance the viewing experience. The ODMLA25 Articulating Outdoor Wall Mount provides full motion for optimal viewing from many positions. The mount features a weatherproof design including protective outdoor-rated finishing and stainless-steel hardware.

Pair with most indoor or outdoor displays for outdoor digital signage, outdoor living and humid indoor environments.

Winner of a 2017 Commercial Integrator BEST Award.

Key Features

Weatherproof design with outdoor-rated finishing and stainless-steel hardware

150 lbs (68 kg) weight capacity

More than 20” (508 mm) extension range

Universal interface fits displays with 75x75mm to 709x444mm VESA patterns

Centris technology provides +5/-15 degrees of effortless fingertip tilt

Integrated cable management provides a clean install

Quick-connect interface for easy mounting

Quick-releasable pin locks display in recessed “home” position

Padlock feature for additional security (padlock not included)

Useful Documents
ODMLA25 Installation Manual
ODMLA25 Technical Drawing
Specifications

General Specs

TiltYes
Depth (in.)4.88
Width (in.)29.45
Height (in.)18.5
TV Size's up to (in.)80
Weight Capacity (lbs.)150
Mounting LocationWall

General

ColorBlack
Maximum Extension21.66" (550 mm)
Minimum Depth4.88" (124 mm)
Mounting Pattern Compatibility (Universal Versions)75 x 75 mm - 709 x 444 mm
NotesODMLA25 may be installed to a bare 8" concrete wall if 5/16 x 3" Buildex® Tapcon® anchors with Blue Climaseal® coating (not included) are used in place of lag bolts (D) provided.
Overall Dimensions (H x W x D)18.5 x 29.45 x 4.88" (470 x 748 x 124 mm)
Solution TypeUniversal
Tilt+/-15˚
Typical Screen Sizes32 - 80"
Wall Stud Compatibility In16"
Weight Capacity150 lbs (68 kg)
OrientationLandscape
