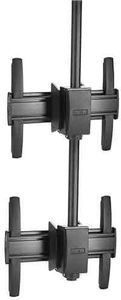

Chief® FUSION™ Black 1 x 2 Large Ceiling Mount

Chief

Model #:

LCM1X2U

Model #: LCM1X2U
127118
Chief
$1,088.00

At a Glance

Product Dimensions 16.5"h x 26.8"w x 10.2"d

Chief's FUSION ceiling mounted stacking solutions make it possible to install multiple displays vertically. Great for digital signage installations.Read More

$1,088.00

Not Stocked In Local Warehouse

SyncposQty 0

People also viewed:

Get to know this product.

Product Overview

Product Overview

Bundled solution containing (2) flat panel ceiling mounts and (1) CPA048P 4ft pre-drilled column

For connecting to longer drop length 1.5" NPT extension columns you must order CPA264 separately

For connecting to longer drop length pin connection columns you must order CPA263 separately

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

Bundled solution containing (2) LCM1U flat panel ceiling mounts and (1) CPA048P 4ft pre-drilled column

For connecting to longer drop length 1.5" NPT extension columns you must order CPA264 separately

For connecting to longer drop length pin connection columns you must order CPA263 separately

Useful Documents
LCM1X2U Installation Manual
LCM1X2U Technical Drawing
Specifications

General Specs

Depth (in.)10.2
Width (in.)26.8
Height (in.)16.5
TV Size's up to (in.)55
Mounting LocationCeiling

General

CertificationsTAA Compliant
ColorBlack
Mounting Pattern Compatibility (Universal Versions)200mm x 100mm - 616 x 400mm
NotesWeight capacity is per display
Number Of Monitors2
Overall Dimensions (H x W x D)16.5 x 26.8 x 10.2" (420 x 680 x 255 mm)
Screen Array Configuration1 x 2
Shipping Weight48 lbs (21.77 kg)
Solution TypeUniversal
Typical Screen Sizes40 - 55"
Weight Capacity125 lbs (56.7 kg)
OrientationLandscape
