Chief® Professional AV Solutions Black LCM Large Ceiling Mount
Chief® Professional AV Solutions Black LCM Large Ceiling Mount 0
Chief® Professional AV Solutions Black LCM Large Ceiling Mount 1

Chief® Professional AV Solutions Black LCM Large Ceiling Mount

Model #: LCM4U
83285
Chief
At a Glance

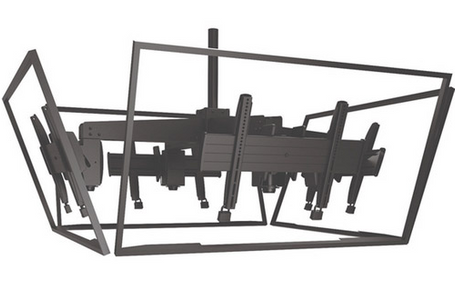

Chief's Fusion Ceiling Multi-Directional solutions create 360 viewing capability with a quad-mount system. The LCM4U safely supports multiple displays from a single column drop while maintaining the installer-friendly features of the single screen Fusion mounts.
$2,069.60Save $NaN
$2,069.60

People also viewed:

Get to know this product.

  • Ceiling Plate and Extension Column are required and must be ordered separately
  • Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
  • See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
  • See CPA ceiling plates and CPA columns for pin connection compatibility
  • Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
  • Simple on/off connection for ease of installation and service.
  • Effortlessly adjust display using Centris fingertip tilt technology.
  • Tool free screen engagement with optional padlock security.
  • Mount swivels to any preferred viewing angle.
Useful Documents
Manual
Specifications

General

AdjustmentsRoll, +/- 3°
CertificationsUL Listed
ColorBlack
Mounting Pattern Compatibility (Universal Versions)200 x 200 - 600 x 400 mm
NotesWeight capacity is per display
Number Of Monitors4
Overall Dimensions (H x W x D)18.7 x 56.0 x 56.0" (47.5 x 142.2 x 142.2 cm)
Shipping Weight143 lbs (64.86 kg)
Tilt+ 5° , - 20°
Typical Screen Sizes32 - 65"
Weight Capacity85 lbs (38.6 kg) per display
OrientationLandscape

Misc. Specs

Product Weight (lbs.)143
TiltYes
Depth (in.)56
Width (in.)56
Height (in.)18.7
TV Size's up to (in.)60
Weight Capacity (lbs.)85
Mounting LocationCeiling
