Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

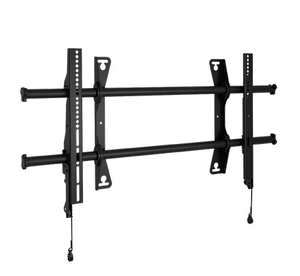

Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
|Certifications||UL Listed, OSHPD Approved, TÜV Certified|
|Lateral Shift||17.4" (441 mm)|
|Minimum Depth||2" (51 mm)|
|Mounting Pattern Compatibility (Universal Versions)||100 x 100 mm - 870 x 500 mm|
|Overall Dimensions (H x W x D)||17.93 x 34.75 x 2" (455 x 883 x 51 mm)|
|Shipping Weight||7 kg|
|Typical Screen Sizes||42 - 86"|
|Wall Stud Compatibility In||16" - 32" (406 mm - 813 mm)|
|Weight Capacity||200 lbs (90.7 kg)|
|Product Weight (lbs.)||16.31|
|TV Size's up to (in.)||63|
|Weight Capacity (lbs.)||200|
