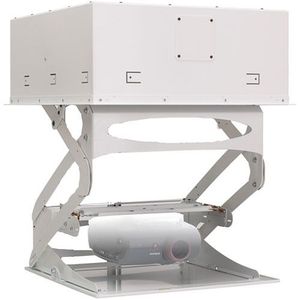

Chief® SMART-LIFT White Automated Projector Mount

Model #: SL236FD

$4,788.00

At a Glance

The SL236 provides Extended Travel with exceptionally smooth and quiet movement and is a great option for fixed ceilings in homes and corporate offices.

WarningProposition 65 Warning for California Residents
Chief® SMART-LIFT White Automated Projector Mount

General

AdjustmentsRoll: 2°, Pitch: 15°, Yaw: 10°
Ceiling Closure23.9" x 23.9" ( 607 x 607 mm)
Ceiling Opening25.5" x 28.5" x 11.1" (648 x 724 x 282 mm)
CertificationsFCC Approved, UL Listed, TAA Compliant
Extension36.0"
Max Equip Size H x W x D9.3" x 20.5" x 22.8" (235 x 521 x 578 mm)

General Specs

Depth (in.)28.9
Height (in.)11.1
Weight Capacity (lbs.)35
Mount TypeFixed
Width (in.)26.4
Voltage120
Amp15
Mounting LocationCeiling
CollectionSMART-LIFT
Color Finish NameWhite

Chief® SMART-LIFT White Automated Projector Mount

Model #: SL236FD
125157
Model #: SL236FD
Chief
$4,788.00

$4,788.00

At a Glance

The SL236 provides Extended Travel with exceptionally smooth and quiet movement and is a great option for fixed ceilings in homes and corporate offices.

Get to know this product.

Must order SLB interface bracket separately

Use Chief's MountFinder to determine which model number matches your specific projector

Two internal outlets, one is switched on 110V units

Fits most installation requirements, needing only 11" of clearance above the ceiling

Easily accommodates multiple control options

Extended Downward Travel up to 36" with 3 stopping positions

UL Listed

UL evaluated for use in Other Environmental Air Spaces as defined by Article 300.22, Sub-clause (C) of the NEC

For fixed ceiling installations

TAA compliant

Specifications

General Specs

Depth (in.)28.9
Height (in.)11.1
Weight Capacity (lbs.)35
Mount TypeFixed
Width (in.)26.4
Voltage120
Amp15
Mounting LocationCeiling
CollectionSMART-LIFT
Color Finish NameWhite

General

AdjustmentsRoll: 2°, Pitch: 15°, Yaw: 10°
Ceiling Closure23.9" x 23.9" ( 607 x 607 mm)
Ceiling Opening25.5" x 28.5" x 11.1" (648 x 724 x 282 mm)
CertificationsFCC Approved, UL Listed, TAA Compliant
Extension36.0"
Max Equip Size H x W x D9.3" x 20.5" x 22.8" (235 x 521 x 578 mm)
