Chief® White Suspended Ceiling Projector System
$614.40
At a Glance
Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.
Proposition 65 Warning for California Residents
General Specs
| Depth (in.) | 24.94 |
|---|---|
| Height (in.) | 19.82 |
| Weight Capacity (lbs.) | 59171 |
| Mounting Location | Ceiling |
General
| Adjustments | Roll, Pitch, Yaw (3°, 10°, 360°) |
|---|---|
| Certifications | UL Listed |
| Color | White |
| Extension | 0 - 12" ( 0 - 304.8 mm) |
| Max Equip Size H x W x D | 5 x 17 x 12.5" (127 x 432 x 317 mm) |
| Notes | Storage: Collapsed Width 12" (305 mm); Expanded Dimensions 5.38 x 22 x 13" (137 x 559 x 330 mm) |
| Overall Dimensions (H x W x D) | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Shipping Weight | 40.80 lbs (18.51 kg) |
| Solution | Universal |
| Weight Capacity | 35 lbs (15.9 kg) |
Chief® White Suspended Ceiling Projector System
Model #: SYS474UW
$614.40
At a Glance
Get to know this product.
This option includes a flexible and scalable air handling space rated storage box.

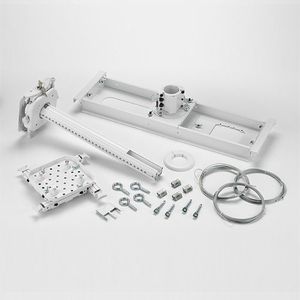

System comes out of box in the order needed with mount and column preassembled
Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids. Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
Detachable electric plate for pre-wiring. Compatible with popular 2 gang adjustable mud rings
Tool-FreeMicrozone adjustment eliminates the need for set screws
CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels for high and low voltage cables
Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection
Air handling space rated enclosure is scalable to fit AV equipment
Shift enclosure along tile bridge to avoid interferences above suspended ceiling.
Removable covers enable side access in shallow spaces and full access from above.
Six trade size conduit knockouts in 0.5", 1", 1.5" (12, 25, 38 mm)
Flexible conduit knockouts allow high voltage conduit to pass through storage box when the power is facing into the room below.
