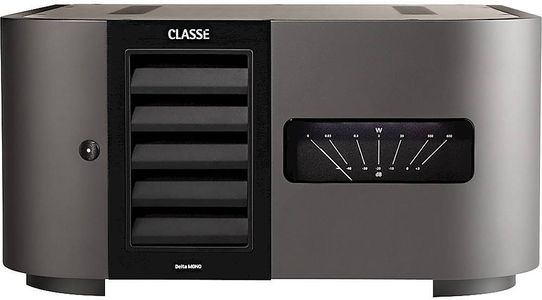

Classe Delta MONO Power Amplifier


Model #:

Delta MONO

Model #: Delta MONO
883855
Classe
$10,999.00

At a Glance

Product Dimensions 8.74"h x 17.50"w x 19.37"d

Delta MONO embodies exquisite, controlled, unending power. A perfectly detailed enclosure cradles a highly innovative blend of technologies and hand-selected components which deliver effortless, refined sound.Read More

Free Shipping
$10,999.00

What We Offer

You Might Also Need

View Options

None Selected

Not Stocked In Local Warehouse

SyncposQty 0

Get to know this product.

Product Overview

Product Overview

Amplication

Delta MONO is crafted for exceptional performance and durability – every detail superbly refined. The first 35W of power are pure Class A, and with over 300W per unit total (1,000W @ 2Ω) at its command, Delta MONO will confidently control any loudspeaker.

Up to 35W delivered in pure Class A operation

300W per unit total

Massive, high-quality power supply

Custom toroidal transformer

Clarity

Delta MONO delivers the utmost clarity in everything you hear. Every detail communicates natural, authoritative sound. An expansive dynamic range with infinitesimal noise delivers unsurpassed fidelity to the musical source. Start listening.

Hand-laid circuit boards

6-layer circuit boards provide for shortened signal and power pathways with lowest noise

Fully balanced output stage and balanced circuitry

22 4-pole Mundorf® capacitors

Custom-made Navcom® feet to absorb vibrations

Furutech® rhodium-plated RCA and torque-guard speaker connectors

Design

Delta MONO continues Classé’s reputation for monumental design. The amplifier creates an immediate presence in any room or installation through its unique form and superb materials. The illuminated VU meter beautifully communicates output with elegance and detail. This is an amplifier that looks as iconic as it sounds.

Harmony between minimal design and unrivalled performance

Luxurious anodized aluminum body

Custom, illuminated VU meters

Perfectly complements other components in the Delta family

Versatility

Thanks to the unique ICTunnel™ cooling technology, Delta MONO is stackable and rackable in a way no conventionally-cooled amplifier can match. Internal temperature is continuously monitored and controlled, ensuring performance in any configuration. Combined with Delta MONO’s construction, ICTunnel supports a lifetime of unrivalled amplification performance.

Proprietary ICTunnel™ temperature regulation technology

Power-on to optimal temperature in minutes

Active sensing and regulation of optimal amplifier temperature

Low-noise operation suitable for studio applications

Useful Documents
Specifications

General Specs

Depth (in.)19.37
Height (in.)8.74
Width (in.)17.50
Frequency Response1Hz – 650kHz
Weight Kilogram50.6
MPNDELTAMONO
Product Weight (lbs.)97.7
CollectionDelta MONO
ColorBlack
Shipping Depth (in.)23
Shipping Width (in.)28
Shipping Height (in.)12
Width (cm)44.4
Height (cm.)22.2
Depth (cm.)49.2
Product Weight (kg)44.3
Amplifier ChannelsMono Block

Overall Dimensions

Width17.50 in (444 mm)
Depth19.37 in (492 mm)
Height8.74 in (222 mm)

Weight

Gross Weight111.6 lbs (50.6 kg)
Net Weight97.7 lbs (44.3 kg)

General

Frequency Response (-3dB, 50Ω source impedance)1Hz – 650kHz
Continuous Output Power (at 1kHz, 0.1% THD+N)C300W / 8Ω 600W / 4Ω 1000W / 2Ω (with AC line held constant)
Harmonic Distortion (measurement bandwidth: 500kHz, 25Vrms in 4Ω or 8 Ω)<0.0016% at 1kHz <0.0018% at 10kHz <0.0028% at 20kHz
Harmonic Distortion (measurement bandwidth: 90kHz, 25Vrms in 4Ω or 8 Ω)<0.0005% at 1kHz <0.0006% at 10kHz <0.0015% at 20kHz
Peak Output Voltage (nominal AC line)148Vp-p into 8Ω 156Vp-p no load
Input Impedance (at 1kHz, BAL / SE)82kΩ
Voltage Gain (at 1kHz, BAL / SE)29dB
Intermodulation Distortion (SMPTE 4:1) (8Ω or 4Ω, BAL / SE)<0.001%
Intermodulation Distortion (CCIF) (8Ω or 4Ω, BAL / SE)<0.002%
Signal-to-Noise Ratio (A wtd in parenthesis) (22kHz BW)117dB (119.5dBA)
Slew Rate72V / μs
Output Impedance0.01Ω (100Hz), 0.011Ω (1kHz), 0.015Ω (10kHz)
Damping Factor (at 1kHz, ref 8Ω)700
