Integra® 4K HDBaseT™ Receiver

Integra

Model #:

HDB-RX1

Model #: HDB-RX1
210199
Integra
$199.99
CLEARANCE
HOT BUY

At a Glance

Product Dimensions 1.38"h x 8.06"w x 3.5"d

HDB-RX1 enables transmission of 4 K / 60 p / 4:4:4 video to an existing AVR or A/V processor via new-generation HDBaseT™ LAN and HDCP 2.2-compliant HDMI® output. With built-in support for RS-232 and IR Control, the device carries POC (Power Over Cable) for enhanced installation flexibility. Ready to wall- or shelf-mount, the HDB-RX1 makes installation of a high-definition entertainment system easier than ever.Read More

Low Stock
Sale $199.99

$400.00

Save $200.01

In Stock

SyncposQty 5

Get to know this product.

Product Overview

Product Overview
4K HDBaseT Port for Multimedia Distribution

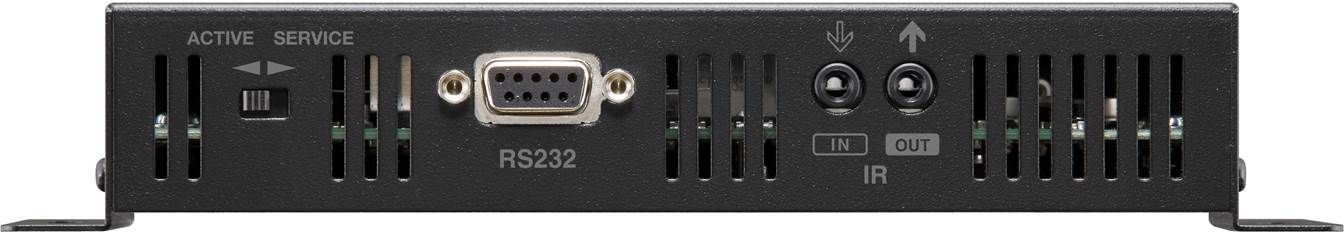

The world's first full 18 Gbps support! The 4K HDBaseT supports 4K/60Hz @4:4:4 / HDCP 2.2, HDR 10, HLG, and WGC. Audio and video signals can clearly be transmitted up to 328 feet utilizing cat5e/cat6 cable from any certified HDBaseT output, like that found in select Integra AVRs and PrePros. The POC enables compatibility with more Rx Devices and makes long distance runs to projectors or a second zone easy and reliable. Furthermore, the control of the enhanced HDBaseT can be accessed through both the IR input / IR Output & Bi-directional RS-232 feeds.

Current Compatible Models

DRX-4

DRX-4.2

DRX-5

DRX-5.2

DRX-7

DRX-7.1

DRX-R1

DRX-R1.1

DRC-R1

DRC-R1.1

Useful Documents
Manual
Specification Sheet
Specifications

General Specs

Product Weight (lbs.)1
Depth (in.)3.5
Width (in.)8.06
Height (in.)1.38
Manufacturer Warranty3 Year

General

Power SupplyAC 100 - 240 V, 50 / 60 Hz
Power Consumption11.2 W
Dimensions (W X H X D)8 1/16" x 1 3/8" x 3 1/2" 205 x 35 x 89 mm
Weight1.0 lbs. (0.45 kg)
Carton Dimensions (W x H x D)9 5/16" x 5 3/8" x 4 13/16" 237 x 137 x 122 mm
Carton Weight1.8 lbs. (0.8 kg)
WarningProposition 65 Warning for California Residents
