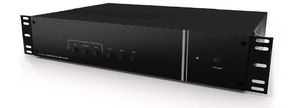

Leon® Aaros Series Dual Channel Subwoofer Amplifier

Leon’s L3-1K Class A/B subwoofer amplifier delivers the power, refinement and flexibility that our Aaros subwoofers deserve. And with 1,000W of clean power, adjustable crossover, variable phase, and tunable EQ, the L3-1K subwoofer amplifier provides fully controllable sound to enhance any listening experience.

• 1,000W, dual-channel, Class A/B subwoofer amplifier provides clean, controlled output
• Low frequency parametric EQ allows you to tailor the sound
• Patented tracking down-converter power supply for high efficiency
• Manual, auto or triggered on/off for easy integration
• Switchable subsonic and bass boost filters
• High pass output sends signal back into integrated systems

Specifications

• Power Output: 1,000W into 4O
• Power Requirements: 120/230 VAC
• Standby Power: 120V 24W; 230V 18.4W
• Phase Adjustment: 0°–180°
• Crossover Adjustment: 30–200 Hz
• Subsonic Filter: -3 dB @ 18 Hz, Q=0.8
• Bass Boost: +3 dB @ 25 Hz, Q=1.4
• High Pass: -3 dB @ 80 Hz, 12 dB/octave
• Low Pass: 30-200 Hz
• Inputs: RCA-style jacks: L/R, LFE; 3.5mm 12V Trigger
