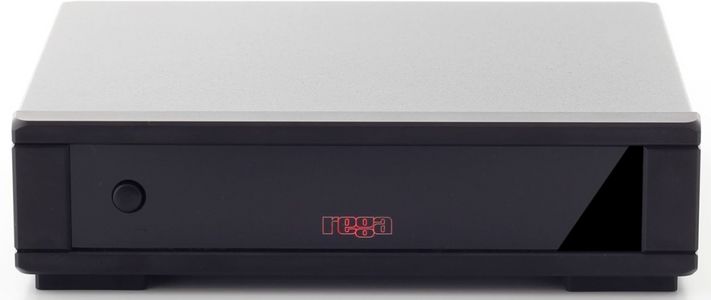

Rega Fono MM MK4 Phono Preamplifier

Rega

Model #:

Fono MC MK4

Model #: Fono MC MK4
1601435
Rega
$555.00

At a Glance

The Fono MC MK4 is an exceptionally high quality MC phono stage designed to maximize the potential of any low output MC cartridge. Although specifically designed to complement the latest Rega range of moving coils you will find full adjustability for gain and loading via dip switches conveniently placed on the rear panel making the Fono MC MK4 compatible with a wide range of third party low output MC cartridges.Read More

Free Shipping
$555.00

What We Offer

You Might Also Need

View Options

None Selected

Not Stocked In Local Warehouse

SyncposQty 0

Get to know this product.

Product Overview

Product Overview

Now housed in a brand new redesigned case to match the new Fono MM MK5 and Neo MK2 and Rega’s latest range of electronic components offering a modern look guaranteed to integrate in to any hi-fi system.

The Fono MC MK4 has been designed to be effective, easy to use, and above all, to reproduce music. The Fono MC MK4 uses the Linear Systems low noise LSK389 FET in an all discrete input stage where low noise and linearity are vitally important to get the best from an MC cartridge. Because of the high input impedance of FET, the loading effects of the amplifier circuit are minuscule and do not affect the performance of the cartridge.

Dedicated moving coil phono stage

Simple connectivity and operation

Fully adjustable via DIP switches via rear panel

MUSE operational amplifier used in RIAA equalization amplifier

Two selectable gain settings

Default factory settings matched for all Rega MC models

Latest design custom casework

Lifetime warranty against manufacture defects

Useful Documents
User Manual
Specifications

General Specs

Voltage24
Amp0.15
Analog Audio(RCA) Input1
Manufacturer WarrantyLimited Lifetime
Color Finish NameBlack

Technical Specifications

Output Impedance200 Ω
Recommended Minimum Output Load Resistance5 kΩ
Frequency Response (50KΩ output load)13 Hz (-3 dB) to 100 kHz (-0.3 dB)
RIAA Accuracy (50 kΩ Output Load)Better than ±0.2 dB 100 Hz to 100 kHz

Load Settings for Adjustable MC Stages

Input Sensitivity (for 200 mV Output)4 off = 133 uV / 4 on = 67 uV
Input Loading Resistance1 and 2 off = 400 Ω / 1 on = 100 Ω / 2 on = 150 Ω / 1 and 2 on = 70 Ω
Input Loading Capacitance3 off = 1000 pF / 3 on = 4300 pF / Gain (at 1 kHz) / 4 off = 63.5 dB / 4 on = 69.5 dB
Maximum Input Level (at 1 kHz)4 off = 6.7 mV / 4 on = 3.4 mV
Factory Settings for All Rega MC CartridgesImpedance 100 Ω / Capacitance 1000 pF / Gain Setting High
